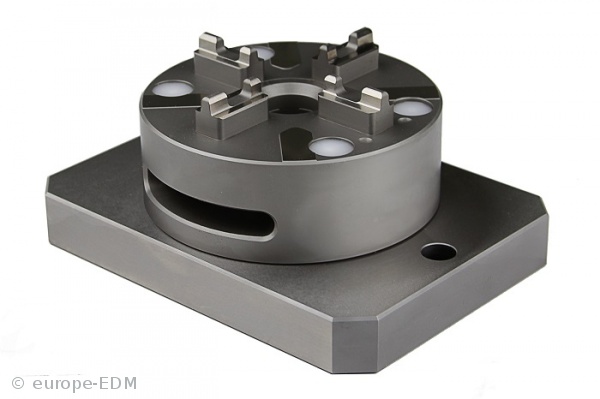

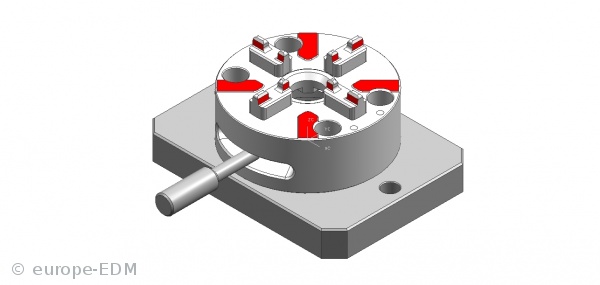

Manuelles Spannfutter D100 auf Platte,
inklusive Spannhebel
Futter: M8 Lochabstand 40,00/70,00mm.
Platte: M10 Lochabstand 125mm
kompatibel zu ITS-100
| ID | MATERIAL | DIMENSION | CLAMP POWER | REPEATABILITY | UNIT |
| SZ-411-550300 | INOX | D100x 36 (Z-reference)mm/148x108x20mm | 10000N | 0,002 mm | 1 |
